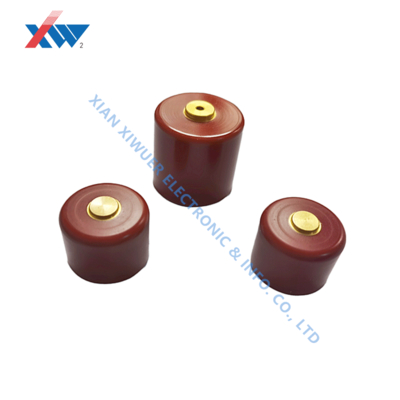

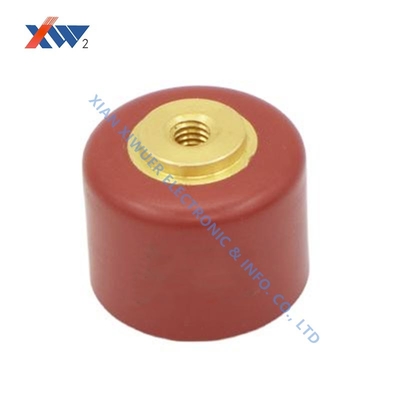

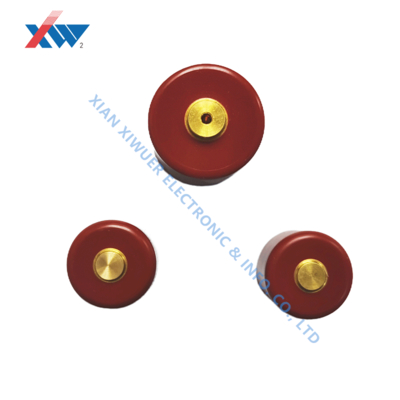

40kV 500pF High Voltage Doorknob Capacitor 28x33x41mm
試供品およびクーポンのための私に連絡しなさい。
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 消化 | ¥0.0040 | 抵抗電圧 | 1.5ur●1分 |
|---|---|---|---|
| 絶縁抵抗 | ≧1.0×105mΩ | 寸法（mm） | D：28 | H：33 | L：41 | D：8 | M：4 |
| ハイライト | 40kV high voltage doorknob capacitor,500pF high voltage capacitor,28x33x41mm doorknob capacitor |
||
製品の説明
40kV 500pF High Voltage Doorknob Capacitor
Product Overview
Ultra-high voltage ceramic capacitors are essential components for specialized industrial applications, offering high withstand voltage, low loss, and exceptional performance in high peak current and rapid pulse discharge scenarios.
Key Applications
- Pulse power and laser equipment
- Medical imaging systems
- Industrial processing machinery
- Power transmission and energy infrastructure
- Scientific research and specialized industrial applications
Technical Specifications
| No. | Specification | Dissipation | Withstanding Voltage | Insulation Resistance | Dimensions (mm) |
|---|---|---|---|---|---|
| 1 | 20kV-2000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:45 | H:19 | L:23 | D:12 | M:5 |
| 2 | 20kV-10000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:65 | H:15 | L:19 | D:12 | M:5 |
| 3 | 20kV-18000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:80 | H:17 | L:25 | D:12 | M:5 |
| 4 | 30kV-1000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:45 | H:24 | L:32 | D:12 | M:4 |
| 5 | 30kV-2700pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:60 | H:20 | L:28 | D:12 | M:4 |
| 6 | 30kV-12000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:45 | H:19 | L:23 | D:12 | M:5 |
| 7 | 40kV-150pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:74 | H:18 | L:26 | D:12 | M:5 |
| 8 | 40kV-500pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:28 | H:33 | L:41 | D:8 | M:4 |
| 9 | 40kV-7500pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:80 | H:24 | L:29 | D:12 | M:6 |
| 10 | 40kV-10000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:80 | H:22 | L:26 | D:16 | M:5 |
Selection Guidelines
High-voltage ceramic capacitors require careful selection and handling. Consider these critical factors:
- Voltage Margin: Operating voltage must be significantly below rated voltage, accounting for peak pulse conditions
- Thermal Management: Proper heat dissipation is essential for high-frequency/high-current applications
- Frequency Characteristics: Performance varies by dielectric material - consult detailed specifications
- Safety Compliance: All design, installation and operation must follow strict safety regulations by qualified personnel
