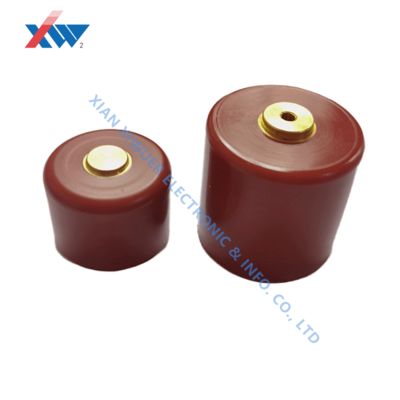

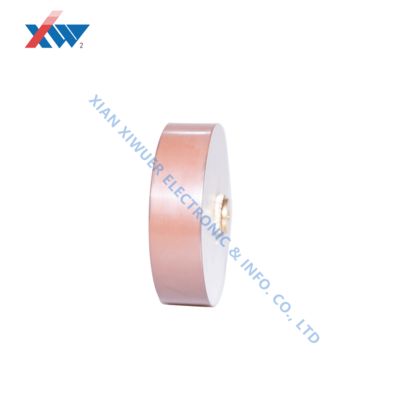

High Voltage Doorknob Capacitor 20kV-2000pF Efficiency Multiplier for Electrostatic Dust Removal and Spraying/Coating
試供品およびクーポンのための私に連絡しなさい。
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| ハイライト | Efficiency Multiplier High Voltage Doorknob Capacitor,Electrostatic Dust Removal Ceramic Doorknob Capacitor,Electrostatic Spraying/Coating HV Doorknob Capacitor |
||
|---|---|---|---|
製品の説明
High Voltage Doorknob Capacitors: CT8-2-20kV-2000pF
Applications: Efficiency Multiplier, Electrostatic Dust Removal, Electrostatic Spraying/Coating
Product Specifications
| No. | Specification | Dissipation | Withstanding Voltage | Insulation Resistance | Dimensions (mm) |
|---|---|---|---|---|---|
| 1 | 20kV-2000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:45 | H:19 | L:23 | D:12 | M:5 |
| 2 | 20kV-10000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:65 | H:15 | L:19 | D:12 | M:5 |
| 3 | 20kV-18000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:80 | H:17 | L:25 | D:12 | M:5 |
| 4 | 30kV-1000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:45 | H:24 | L:32 | D:12 | M:4 |
| 5 | 30kV-2700pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:60 | H:20 | L:28 | D:12 | M:4 |
| 6 | 30kV-12000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:45 | H:19 | L:23 | D:12 | M:5 |
| 7 | 40kV-150pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:74 | H:18 | L:26 | D:12 | M:5 |
| 8 | 40kV-500pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:28 | H:33 | L:41 | D:8 | M:4 |
| 9 | 40kV-7500pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:80 | H:24 | L:29 | D:12 | M:6 |
| 10 | 40kV-10000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:80 | H:22 | L:26 | D:16 | M:5 |
Efficiency Multiplier: Dedicated Capacitor Solutions
Our high voltage doorknob capacitors provide optimized solutions for electrostatic precipitators and electrostatic spraying applications, where efficient and stable high-voltage electrostatic fields are critical.
Electrostatic Precipitator Applications
Essential for clean energy and green production in power plants, cement plants, and steel mills, where precipitator efficiency is crucial for meeting environmental standards.
Industry Challenges
- Harsh operating conditions: High temperatures, dust levels, and potential corrosive gases
- Extremely high operating voltages (40kV to 100kV+)
- Continuous operation demands exceptional reliability
Our Solutions
- High reliability and extended lifespan design matching dust collector overhaul cycles
- Superior shock resistance for transient voltage surge protection
- Complete high-voltage product line up to 100kV+ for simplified power supply design
Electrostatic Spraying/Coating Applications
Delivering superior surface finish quality in automotive, furniture, and consumer electronics industries.
Industry Challenges
- Critical voltage stability requirements affecting coating uniformity
- Demanding precision for flawless surface results
- Compact, lightweight components for equipment integration
Our Solutions
- Temperature-compensated ceramic dielectrics for stable capacitance
- Low inductance and high-frequency characteristics for clean power output
- Compact, high-energy-density design for equipment flexibility
