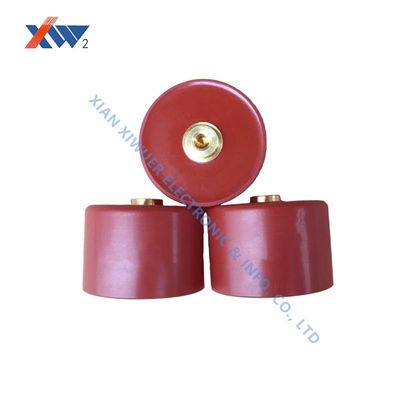

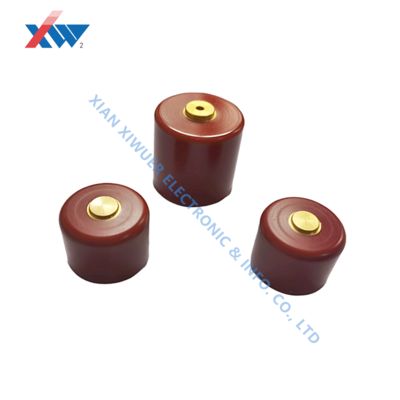

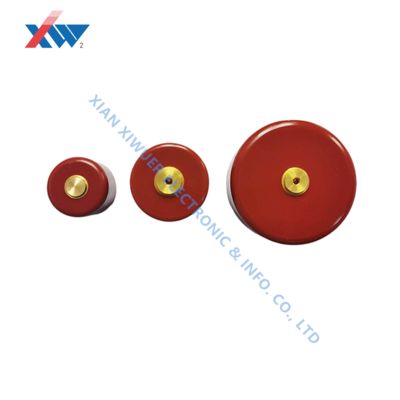

High Voltage Doorknob Capacitor with Low Dissipation Factor High Withstanding Voltage and High Insulation Resistance for Long-Lasting Lightning Protection
試供品およびクーポンのための私に連絡しなさい。
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| ハイライト | Low Dissipation Factor High Voltage Doorknob Capacitor,High Withstanding Voltage Doorhandle Capacitor,High Insulation Resistance HV Ceramic Capacitor |
||
|---|---|---|---|
製品の説明
The Key to Reliability - Long-Lasting Lightning Protection Performance of Doorhandle Capacitors
Technical Specifications
| No. | Specification | Dissipation | Withstanding voltage | Insulation resistance | Dimension(mm) | ||||
| 1 | 20kV-2000pF |
≦0.0040 |
1.5Ur● 1min |
≧1.0×105MΩ |
D | H | L | D | M |
| 2 | 20kV-10000pF | 45 | 19 | 23 | 12 | 5 | |||
| 3 | 20kV-18000pF | 65 | 15 | 19 | 12 | 5 | |||
| 4 | 30kV-1000pF | 80 | 17 | 25 | 12 | 5 | |||
| 5 | 30kV-2700pF | 45 | 24 | 32 | 12 | 4 | |||
| 6 | 30kV-12000pF | 60 | 20 | 28 | 12 | 4 | |||
| 7 | 40kV-150pF | 20 | 33 | 41 | 8 | 4 | |||
| 8 | 40kV-500pF | 28 | 33 | 41 | 8 | 4 | |||
| 9 | 40kV-7500pF | 80 | 24 | 29 | 12 | 6 | |||
| 10 | 40kV-10000pF | 80 | 22 | 26 | 16 | 5 | |||
| 11 | 50kV-1000pF | 50 | 30 | 34 | 12 | 4 | |||
| 12 | 50kV-1000pF | 32 | 27 | 31 | 16 | 5 | |||
| 13 | 50kV-5600pF | 80 | 31 | 35 | 16 | 5 | |||
| 14 | 60kV-1500pF | 50 | 31 | 34 | 12 | 5 | |||
| 15 | 60kV-3000pF | 65 | 32 | 35 | 16 | 5 | |||
| 16 | 100kV-500pF | 50 | 54 | 58 | 12 | 5 | |||
| 17 | 100kV-2000pF | 51 | 32 | 35 | 16 | 5 | |||
| 18 | Insulator type 100kV-1500pF | 68 | 36 | 40 | 16 | 5 | |||
| 19 | 150kV-820pF | 65 | 95 | 100 | 12 | 5 | |||
| 20 | 200kV-600pF | 50 | 90 | 94 | 16 | 5 | |||
Reliable Lightning Protection Performance
Lightning arresters must remain readily operational for decades. High-voltage doorhandle capacitors achieve exceptionally long lifespans through optimized materials and enhanced processes.
Key Features
- Dielectric Material: Barium strontium titanate-based ceramic doping suppresses aging effects under electric field strength, resulting in a capacitance change of ≤±5% after 10,000 hours of accelerated aging testing.
- Electrode and Package: Aluminum foil protrusion welding and a lead-free press-fit structure prevent lead edge burrs from damaging the dielectric, enhancing mechanical strength.
- Thermal Management: A low dissipation factor (tanδ ≤ 0.001) combined with heat dissipation from the metal casing keeps the full-load temperature rise to ≤15K.
In areas prone to thunderstorms (such as substations in mountainous areas), these capacitors can withstand over 100 surges annually, have a design life of over 20 years, and a failure rate of less than 0.1%, significantly reducing operation and maintenance costs.
