Door handle capacitor with leadless press-fit series structure
試供品およびクーポンのための私に連絡しなさい。
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| ハイライト | Leadless Design High Voltage Doorknob Capacitor,20kV-2000pF Doorknob Capacitor,30kV-1000pF HV Doorknob Capacitor |
||
|---|---|---|---|
製品の説明

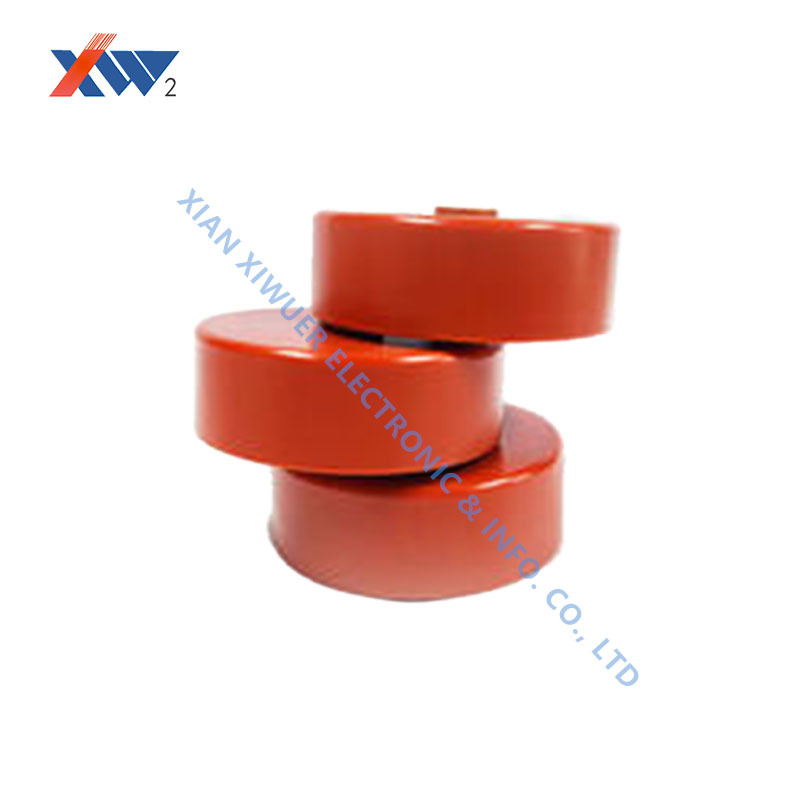

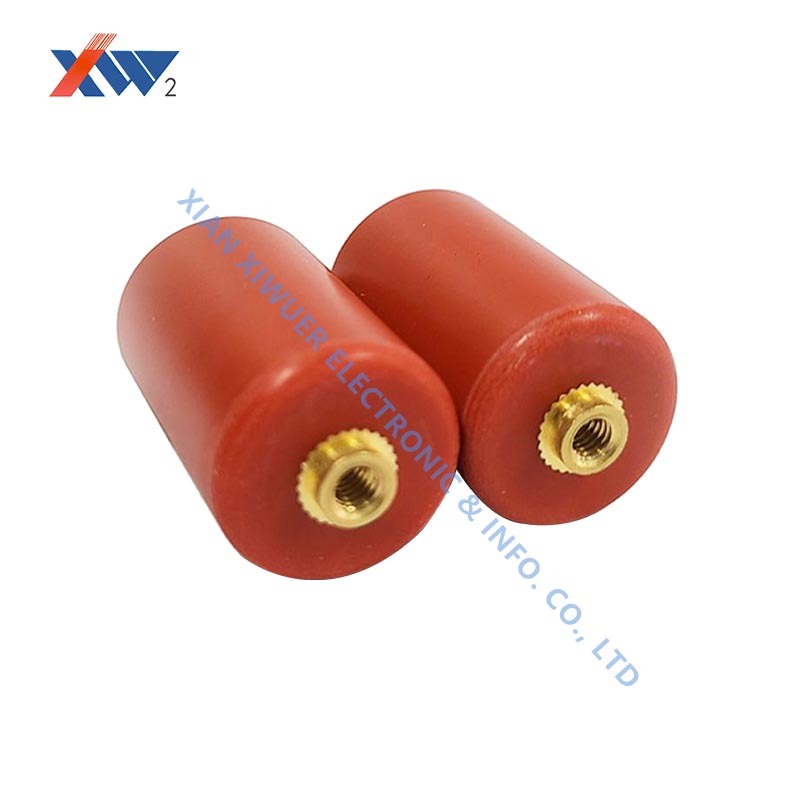

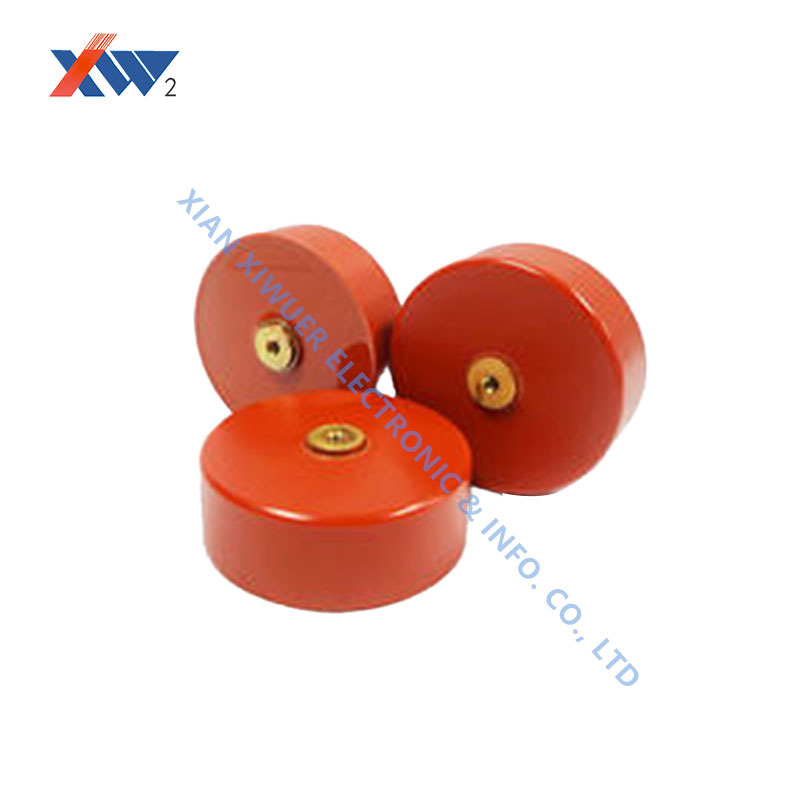

Leadless Design High Voltage Doorknob Capacitors
Technical Specifications
| No. | Specification | Dissipation | Withstanding voltage | Insulation resistance | Dimension(mm) | ||||
| 1 | 20kV-2000pF |
≦0.0040 |
1.5Ur● 1min |
≧1.0×105MΩ |
D | H | L | D | M |
| 2 | 20kV-10000pF | 45 | 19 | 23 | 12 | 5 | |||
| 3 | 20kV-18000pF | 65 | 15 | 19 | 12 | 5 | |||
| 4 | 30kV-1000pF | 80 | 17 | 25 | 12 | 5 | |||
| 5 | 30kV-2700pF | 45 | 24 | 32 | 12 | 4 | |||
| 6 | 30kV-12000pF | 60 | 20 | 28 | 12 | 4 | |||
| 7 | 40kV-150pF | 20 | 33 | 41 | 8 | 4 | |||
| 8 | 40kV-500pF | 28 | 33 | 41 | 8 | 4 | |||
| 9 | 40kV-7500pF | 80 | 24 | 29 | 12 | 6 | |||
| 10 | 40kV-10000pF | 80 | 22 | 26 | 16 | 5 | |||
| 11 | 50kV-1000pF | 50 | 30 | 34 | 12 | 4 | |||
| 12 | 50kV-1000pF | 32 | 27 | 31 | 16 | 5 | |||
| 13 | 50kV-5600pF | 80 | 31 | 35 | 16 | 5 | |||
| 14 | 60kV-1500pF | 50 | 31 | 34 | 12 | 5 | |||
| 15 | 60kV-3000pF | 65 | 32 | 35 | 16 | 5 | |||
| 16 | 100kV-500pF | 50 | 54 | 58 | 12 | 5 | |||
| 17 | 100kV-2000pF | 51 | 32 | 35 | 16 | 5 | |||
| 18 | Insulator type 100kV-1500pF | 68 | 36 | 40 | 16 | 5 | |||
| 19 | 150kV-820pF | 65 | 95 | 100 | 12 | 5 | |||
| 20 | 200kV-600pF | 50 | 90 | 94 | 16 | 5 | |||
Structural Advantages
Traditional capacitor voltage dividers are prone to problems such as cold solder joints and burrs piercing the dielectric due to the lead-sheet welding process. Our doorknob capacitors employ a leadless, press-fit series structure that interconnects components via direct crimping of aluminum foil electrodes.
- Low inductance (≤20nH) combined with high mechanical strength
- Ideal for circuit breaker grading capacitors and CVTs (capacitor voltage transformers)
- Voltage grading applications ensure uniform voltage distribution across series circuit breakers
- Effectively suppresses restrike overvoltage
- Meets GB/T 4705 standard requirements
- More suitable for automated production processes
A domestic high-voltage electrical equipment manufacturer employed this capacitor in a 252kV GIL (gas-insulated line) project, reducing the annual failure rate of the voltage divider by 70%.
