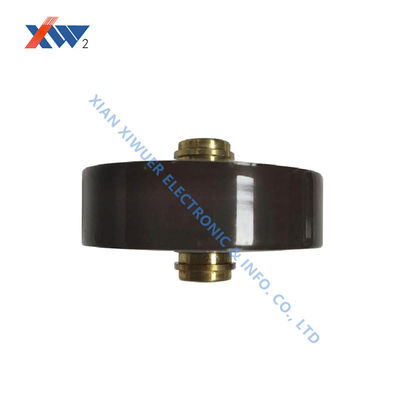

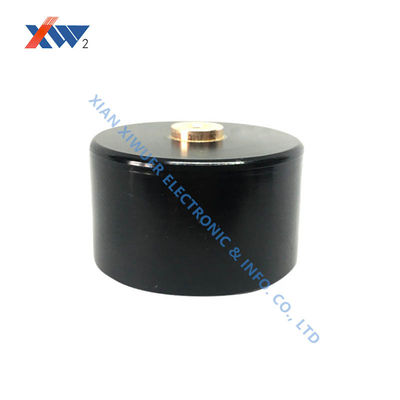

20kV-2000pF 20kV-10000pF 20kV-18000pF High Voltage Doorknob Capacitor for PLC Coupling Systems
試供品およびクーポンのための私に連絡しなさい。
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 消化 | ¥0.0040 | 抵抗電圧 | 1.5ur●1分 |
|---|---|---|---|
| 絶縁抵抗 | ≧1.0×105mΩ | ||
| ハイライト | 20kV-2000pF High Voltage Doorknob Capacitor,20kV-10000pF PLC Coupling Capacitor,20kV-18000pF HV Ceramic Capacitor |
||
製品の説明
High-Voltage Door Handle Capacitors for PLC Coupling Systems
High-voltage power line communication coupling systems are essential equipment for implementing power line carrier communications. These systems efficiently couple high-frequency communication signals while safely isolating the power frequency high voltage.
Technical Specifications
| No. | Specification | Dissipation | Withstanding voltage | Insulation resistance | Dimension(mm) | ||||
| 1 | 20kV-2000pF |
≦0.0040 |
1.5Ur● 1min |
≧1.0×105MΩ |
D | H | L | D | M |
| 2 | 20kV-10000pF | 45 | 19 | 23 | 12 | 5 | |||
| 3 | 20kV-18000pF | 65 | 15 | 19 | 12 | 5 | |||
| 4 | 30kV-1000pF | 80 | 17 | 25 | 12 | 5 | |||
| 5 | 30kV-2700pF | 45 | 24 | 32 | 12 | 4 | |||
| 6 | 30kV-12000pF | 60 | 20 | 28 | 12 | 4 | |||
| 7 | 40kV-150pF | 20 | 33 | 41 | 8 | 4 | |||
| 8 | 40kV-500pF | 28 | 33 | 41 | 8 | 4 | |||
| 9 | 40kV-7500pF | 80 | 24 | 29 | 12 | 6 | |||
| 10 | 40kV-10000pF | 80 | 22 | 26 | 16 | 5 | |||
| 11 | 50kV-1000pF | 50 | 30 | 34 | 12 | 4 | |||
| 12 | 50kV-1000pF | 32 | 27 | 31 | 16 | 5 | |||
| 13 | 50kV-5600pF | 80 | 31 | 35 | 16 | 5 | |||
| 14 | 60kV-1500pF | 50 | 31 | 34 | 12 | 5 | |||
| 15 | 60kV-3000pF | 65 | 32 | 35 | 16 | 5 | |||
| 16 | 100kV-500pF | 50 | 54 | 58 | 12 | 5 | |||
| 17 | 100kV-2000pF | 51 | 32 | 35 | 16 | 5 | |||
| 18 | Insulator type 100kV-1500pF | 68 | 36 | 40 | 16 | 5 | |||
| 19 | 150kV-820pF | 65 | 95 | 100 | 12 | 5 | |||
| 20 | 200kV-600pF | 50 | 90 | 94 | 16 | 5 | |||
Key Features and Benefits
In PLC systems, high-voltage doorknob capacitors serve as indispensable "frequency selectors" and "insulation barriers" in the coupling circuit, addressing two core challenges:
- Withstand power line voltages from several thousand to tens of thousands of volts to ensure absolute safety for back-end communication equipment
- Achieve low-loss signal transmission within the carrier frequency range (typically 40-500kHz)
Our high-voltage door handle capacitors feature specialized ceramic dielectric and vacuum epoxy potting process that ensures:
- Stable insulation performance across voltage levels of 35-500kV
- Low equivalent series resistance (ESR) and low inductance (ESL) for excellent frequency response
- Exceptional temperature stability (±2% capacitance change from -40°C to +85°C)
- Long-term reliability in harsh environments
As a core component in the coupling circuit, our high-voltage door handle capacitors fulfill the dual duties of high-voltage isolation and high-frequency coupling, ensuring stable operation of PLC systems in various conditions.
