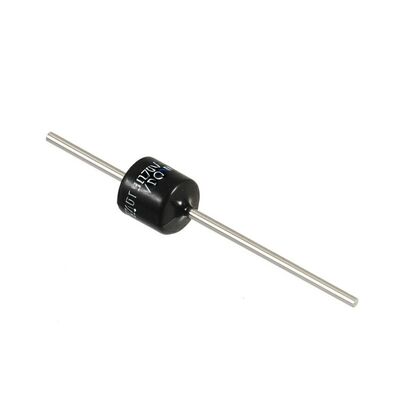

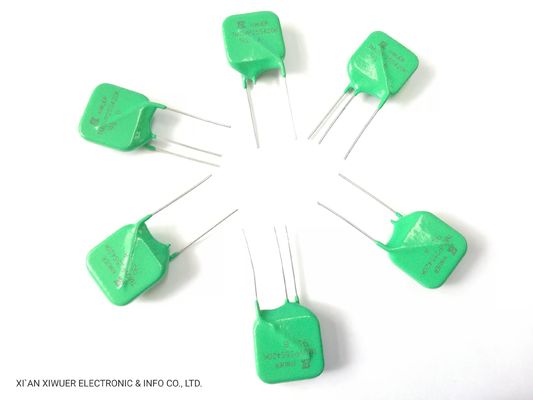

270V Maximum Voltage PTC NTC Thermistor for IC Card Holder Protection with ∮ 5.5*W5.2 Dimensions
試供品およびクーポンのための私に連絡しなさい。
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| Application | Electronic, Electronic Products | Supplier Type | Original manufacturer, ODM |
|---|---|---|---|
| Trademark | XIWUER | Maximum Voltage (V) | 270 |
| Nominal resistance range at 25 ℃ Rn (Ω) | 300~500 | Dimensions(mm) | ∮ 5.5*W5.2 |
| ハイライト | 270V Maximum Voltage Thermistor,IC Card Holder Protection Thermistor,∮ 5.5*W5.2 Dimensions PTC NTC Thermistor |
||
製品の説明
300-500 Ω PTC NTC Thermistor for IC Card Holder Protection MZ21 04BE
MZ21 04BE (300-500) Ω electronic meter IC card holder protection thermistor designed for prepaid electronic watt-hour meter applications.
IC Card Holder Protection PTC Thermistor
Protection Principle
The IC card holder protection thermistor prevents abnormal use of prepaid electronic watt-hour meter bayonets and protects against external static electricity, lightning strikes, strong electricity, accidental short circuits, and other attacks. It also enhances IC card reading/writing capability and extends the service life of both IC cards and card tables.
Technical Parameters
| Model | Max Voltage (V) | Rated Current (mA) | Switch Current (mA) | Resistance at 25℃ (Ω) | Switch Temp (℃) | Dimensions (mm) |
|---|---|---|---|---|---|---|
| MZ21-05BD (30-60)Ω | 245 | 30 | 120 | 30-60 | 80±5 | 6.5 x 5.5 |
| MZ21-05BD500M | 245 | 30 | 115 | 50±20% | 80±5 | 6.5 x 5.5 |
| MZ21-05BD560M | 245 | 30 | 115 | 56±20% | 80±5 | 6.5 x 5.5 |
| MZ21-04BE (300-500)Ω | 270 | 10 | 25 | 300-500 | 70±5 | 5.5 x 5.2 |
IC Card Holder Protection PTC Module
Notes
- Pin pitch: 3.0±0.1mm for all connections
- Lead description: Pins 2,4,6,8,10 are input pins; 1,3,5,7,9 are output pins; pin 11 is GND terminal
- Custom specifications available based on customer requirements
PTC Module Technical Parameters
| Model | Regulation Range (V) | Resistance Range (Ω) | Switch Temp (℃) | Lead Spacing (mm) | Wire Diameter (mm) | Module Size (mm) |
|---|---|---|---|---|---|---|
| PTCMK4-05BD(30-60)/04BE(300-500) | 5.6±5% | 30-60 / 300-500 | 80 / 70 | 3.0±0.1 | 0.6±0.5 | 33.5 x 13.0 x 8.5 |
| PTCMK4-05BD(30-60)/04BE(300-500)-A | 6.8±15%/5.6V±5% | 30-60 / 300-500 | 80 / 70 | 3.0±0.1 | 0.6±0.5 | 33.5 x 13.0 x 8.5 |
| PTCMK5-05BD(30-60)/04BE(300-500) | 5.6±5% | 30-60 / 300-500 | 80 / 70 | 3.0±0.1 | 0.6±0.5 | 33.5 x 13.0 x 8.5 |
| PTCMK5-05BD(30-60)/04BE(300-500)-A | 6.8±15%/5.6V±5% | 30-60 / 300-500 | 80 / 70 | 3.0±0.1 | 0.6±0.5 | 33.5 x 13.0 x 8.5 |
| PTCMK6-05BD(30-60)/04BE(300-500) | 5.6±5% | 30-60 / 300-500 | 80 / 70 | 3.0±0.1 | 0.6±0.5 | 37.5 x 13.0 x 8.5 |
| PTCMK6-05BD(30-60)/04BE(300-500)-A | 6.8±15%/5.6V±5% | 30-60 / 300-500 | 80 / 70 | 3.0±0.1 | 0.6±0.5 | 37.5 x 13.0 x 8.5 |
Precautions
- R: Resistance of thermistor between non-adjacent pins (3-4, 5-6, 7-8, 9-10)
- Tc: Switching temperature of thermistor between non-adjacent pins
- Custom specifications available based on customer requirements
Company Overview
Xian Xiwuer Electronic & Info. Co., Ltd. is a leading manufacturer of electronic components with:
- 4000㎡ facility in Xi'an with 2300 employees including 580 technicians
- 315 million RMB Yuan total assets
- Main products: Varistors, SPDs, HV Ceramic Capacitors, Capacitive Voltage Dividers, Thermistors
- ISO9001, ISO18000 certified with CCEE, UL, VDE & TUV approvals
- Global exports to Japan, USA, Hong Kong, Korea, Spain, and India
