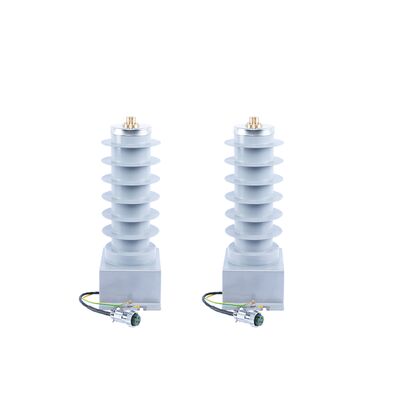

220VAC±10% Output Voltage IP67 Waterproof Ultra-Low Power Consumption (~6W) Power Supply Device for Recloser with Capacitive Voltage Extraction
商品の詳細
| ハイライト | 220VAC±10% Output Voltage Power Supply Device,IP67 Waterproof Recloser Power Supply,Ultra-Low Power Consumption Capacitive Voltage Extraction Device |
||
|---|---|---|---|
製品の説明
Power Supply Device for Recloser
Power Supply Device for Recloser
Electrical Performance Index
| Serial Number | Categories | Unit | Index |
|---|---|---|---|
| 1 | Output Voltage | V | 220VAC±10% |
| 2 | Output Power | W | 10 |
| 3 | Working Temperature | ºC | -40~+70 |
| 4 | Capacitor Dimension | mm | Φ129*330 |
| 5 | Main Size | mm | 186*135*75 |
| 6 | Heat Dissipation Structure | - | Insulating Resin Potting |
| 7 | Package Structure | - | Plastic & Metal Shell |
| 8 | Waterproof Level | - | IP67 |
Advantages of Our New Solution to Recloser

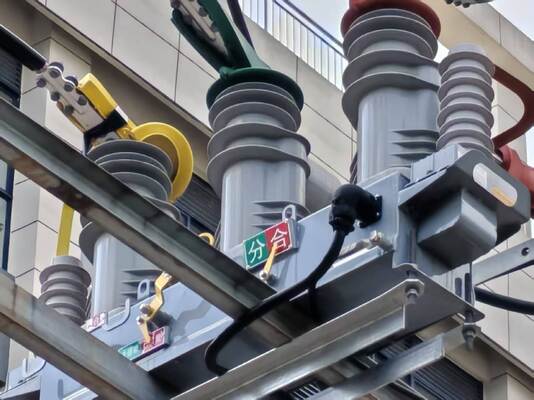

- Innovative Power Sourcing: Utilizes a capacitive voltage extraction device to draw power directly from high-voltage lines, supplying stable energy to both the recloser's internal mechanism and FTU (Feeder Terminal Unit).
- Dual-Power Assurance: Dual-supply mode ensures uninterrupted FTU operation.
- PT Elimination: Completely replaces traditional voltage transformer (PT) power supply and its inherent flaws.
- Ultra-Low Power Consumption: Features an energy-efficient controller, reducing operational costs (Traditional: 40-60W | New: ~6W).
- Quick and Efficient Installation: Streamlined field deployment process.
- Optimized Maintenance: Zero PT maintenance required, slashing long-term labor and upkeep costs.
- Flexible Configuration:
- As a Sectionalizer: Only 1 capacitive extraction unit needed.
- As a Segment Switch: Only 2 capacitive extraction units needed.
- Safety & Reliability:
- Eliminates explosion risks entirely.
- Sampling accuracy unaffected by ambient temperature.
