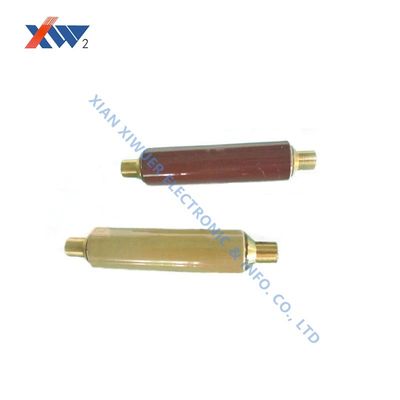

Stable 3.6kVAC Live Line Capacitor with 32kVAC Withstand Voltage and 40kV Lightning Impact for High Voltage Insulation
商品の詳細
| キャパシタンス | 210pF~240pF | 定格電圧 | 3.6kV AC |
|---|---|---|---|
| 誘電損失 | 1V,1KHz 25°C ≤1.2% | 耐電圧 | 32kVAC·5分 |
| 部分排出 | 3.96kVAC<10PC | 雷の衝撃 | 40Kv |
製品の説明
Stable 3.6KVAC Live Line Capacitor High Voltage Insulation With 32kVAC·5min Withstand Voltage And 40kV Lightning Impact
Live line capacitor 3.6KVAC for capacitive insulator capacitor stable ceramic capacitor high voltage applications.
Features
- Store under safe, dry and clean environment
Applications
Ceramic multilayer capacitors are mainly used in low-power high-voltage multiplier circuit modules:
- Electrostatic generating circuit
- X-ray equipment
- High-voltage negative ion generator
Technical Parameters
| Nominal Voltage | Nominal Capacitance | Capacitance Testing Frequency: 1kHz ±20% Testing Voltage: 1V ±0.2V | Withstanding Voltage (Insulating Oil) | Partial Discharge | Lightning Impulse kV (Peak Value) (Insulating Oil) 1.2/5us |
|---|---|---|---|---|---|
| 3.6kV AC | 230 | 210~240 | 32kV AC 5min | 3.96kV AC ≦10pC | 40 |
| 7.2kV AC | 5 | 4~6 | 41kV AC 5min | 7.92kV AC ≦10pC | 60 |
| 40 | 36~44 | ||||
| 150 | 140~170 | ||||
| 12kV AC | 5 | 4~6 | 52kV AC 5min | 13.2kV AC ≦10pC | 75 |
| 20 | 18~22 | ||||
| 40 | 36~44 | ||||
| 50 | 45~55 | ||||
| 125 | 110~140 | ||||
| 200 | 180~210 | ||||
| 300 | 270~330 | ||||
| 24kV AC | 5 | 4~6 | 70kV AC 5min | 26.4kV AC ≦10pC | 125 |
| 15 | 13~17 | 26.4kV AC ≦10pC | |||
| 35 | 35~42 | 26.4kV AC ≦4pC | |||
| 50 | 45~50 | 26.4kV AC ≦10pC | |||
| 80 | 70~90 | 26.4kV AC ≦10pC | |||
| 150 | 125~180 | 26.4kV AC ≦5pC | |||
| 200/400/500 | 180~220 | 26.4kV AC ≦10pC | |||
| 40.5kV AC | 5 | 4~6 | 115kV AC 5min | 44.5kV AC ≦10pC | 185 |
| 10 | 8.5~11.5 | 44.5kV AC ≦5pC | |||
| 45 | 40~50 | 44.5kV AC ≦10pC | |||
| 100 | 90~110 | 44.5kV AC ≦10pC |
