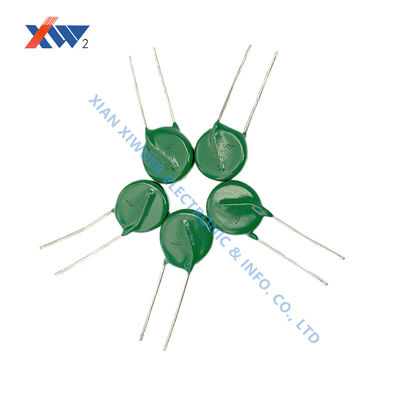

MYG3 14 mm 625V General Purpose MOV Metal Oxide Varistor for Circuit Protection
商品の詳細
| 応用 | 汎用 | 直径 | 14 mm |
|---|---|---|---|
| 材料 | 酸化亜鉛 | K | ±10% |
製品の説明
MYG3 14K 625 Mov Circuit Protection General Purpose High Voltage
Product Overview
MYG3 14K 625 General Purpose MOV
A varistor is a resistive device with non-linear volt-ampere characteristics, which is mainly used for voltage clamping when the circuit is subjected to overvoltage, absorbing excess current to protect sensitive devices.
Key Features
- 28 hours high standard sintering. The chips are sintered for up to 28 hours, and the chips are thoroughly cooked and released to ensure the quality and specifications of the chips.
- Large silver plated area. The silver content is high, and the thickness of silver coating on the chip surface is more than 1.5um, containing more than 75% Ag content.
Applications
- Medical power supply
- Electric welding machine
- Security inspection equipment
- Detection equipment
- Power equipment
- Electrostatic spraying
- Inverter power supply
- High voltage generator
- Igniter
- Negative ion products and other high voltage power supply products
Lead Style Configurations
| Code | Configuration |
|---|---|
| A | straight long |
| B | Outside Crimped short |
| C | Vertical Crimped |
| D | straight short |
| E | Outside Crimped Long |
| F | Inside Crimped short |
Technical Specifications
| Series | Part No. | Varistor Voltage V0.1mA(V) | Max. Allowable Voltage ACr.m.s(V) | Max. Allowable Voltage DC(V) | Max. Clamping Voltage (8/20 μs) Vc(V) | Max. Clamping Voltage (8/20 μs) Ip(A) | Rated Wattage (W) | Energy | Max. Peak Current | Capacitance 1kHz (Reference) (pF) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10/1000 μs (J) | 2ms (J) | 1 time (A) | 2 time (A) | |||||||||
| MYG3 | 14K625+△□ | 1000(900~1100) | 625 | 825 | 1650 | 50 | 0.6 | 182.0 | 130.0 | 250 | 250 | 250 |
Physical Dimensions
| Series | Part No. | Dmax (mm) | H (mm) | A (mm) | Wmax (mm) |
|---|---|---|---|---|---|
| MYG3 | 14K625 | 9.0 | 22.0 | 7.5 ±1 | 9.0 |
Certifications
+=UL 1449 File E321175(S)-- Surge Protective Device
□= UL 1449 File E181155(N)-- Across-The-Line Application
△=C --UL for CSA C22.2 File E321175(S) Dimension in mm
